    AC DC MMA IGBT Mosfet Welding Machine 280A New Condition

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MMA-315M
    Certification : CE
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 70000+PCS+per /month
    Delivery Time : 4 WEEKS
    • Product Details
    • Company Profile

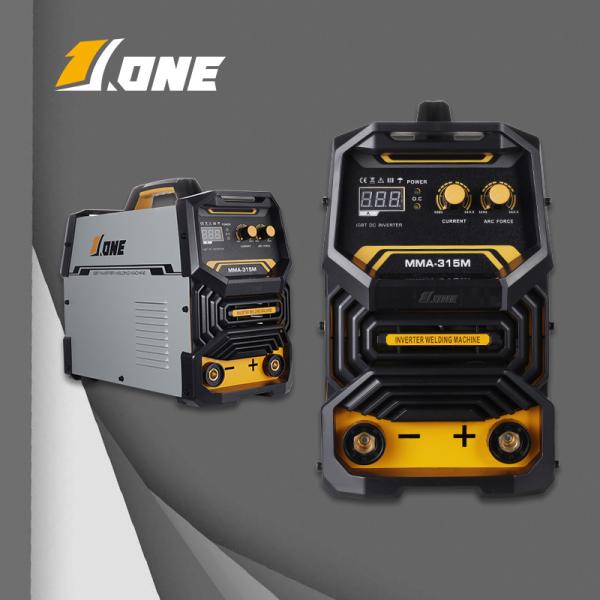

    AC DC MMA IGBT Mosfet Welding Machine 280A New Condition

    AC DC MMA IGBT Mosfet Welding Machine 280A New Condition


    MMA welding machine is a new generation welding machine, which has many advantages in the field of welding. It is designed to meet the needs of both professional and amateur welders.


    1. Advanced IGBT inverter technology: The advanced IGBT inverter technology can achieve high no load voltage with low consumption and high output. This feature greatly improves the service life and reliability of the welder.


    2. High no load voltage: The high no load voltage makes it possible for you to smoothly and stably weld with minimal splatter, which means that you can focus on your work rather than worry about the quality of your welds.


    3. All kinds of acid, alkalic electrodes are applicable: You can use all kinds of acid or alkalic electrodes without any problems because this product has an electronic reactor control system, which makes sure that the welding process is stable and smooth with minimal spatter.


    Electronic reactor control system: The electronic reactor control system ensures that your welding job will be completed with efficient performance every time! In addition, it also has multiple protection functions like overheat protection and inverter overcurrent or overvoltage protection as well as output short-circuit protection to ensure safe operation during operation.


    technical parameter


    ModelMMA-250MMMA-280MMMA-315M
    TypeMOS 3PCBMOS 3PCBMOS 3PCB
    AC Input Voltage(V)220V (110V/220V can do)220V (110V/220V can do)220V (110V/220V can do)
    Rated Input Power Capacity(KVA)77.79.2
    Input Frequency(Hz)50/6050/6050/60
    Non-load Voltage(V)565656
    Output current range(A)20-25020-28020-315
    Rated Duty Cycle(%)60%60%60%
    Efficiency(%)85%85%85%
    Class of InsulationFFF
    Protection class of caseIP21IP21IP21
    Electrode diameter (mm)1.6-4.01.6-5.01.6-5.0
    Quick joint Size(mm)35-5035-5035-50
    Input power cable(m)1.81.81.8
    N.W./G.W.(kg)5.3/6.86/7.511/13
    Machine Size(LxWxH mm)420*160*310420*160*310480*215*380
    Package(LxWxH mm)455*270*355 kraft paper box455*270*355 kraft paper box540*295*425 kraft paper box
    Accessories1.8m 16mm2 200A holder1.8m 16mm2 200A holder1.8m 25mm2 300A holder
    1.2m 16mm2 300A clamp1.2m 16mm2 300A clamp1.2m 25mm2 300A clamp
    Brush,Mask,ManualBrush,Mask,ManualBrush,Mask,Manual
