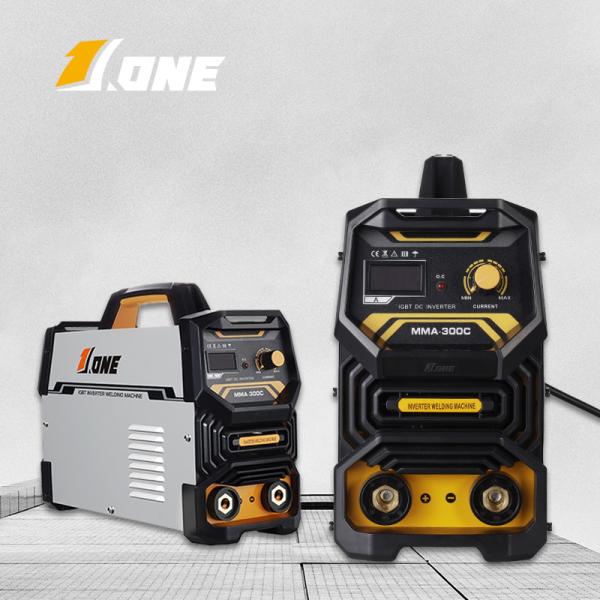

    300amp 110v Igbt Dc Inverter Welder , Mma Welding Equipment

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MMA-200B 250B 300B
    Certification : ISO9001,CE,CCC
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union,, D/A, D/P
    Supply Ability : 1 million pieces per year
    Delivery Time : 30days
    • Product Details
    • Company Profile

    300amp 110v Igbt Dc Inverter Welder , Mma Welding Equipment

    inversora de solda bivolt soldadoras inversoras 300 amp mma dc inverter arc welding machine prices

    Description

    • Inverter arc welding machine is widely used for fixing pipe, bracket, window frame, wall panel and so on. It is the best one in the market. It is small and lightweight with a powerful performance. This series adopts the most advanced inverter technology. It guarantees superior welding performance, nice welding result and minimum post-welding treatment.

    Features

    • the fan stops automatically

    • High performance MMA welding machine can be used in different kind of welding operation and it has high benefit cost ratio



    • Where seam purity is paramount, TIG is the first choice. TIG weld seams have the best mechanical properties. MIG/MAG seams can also achieve very high quality.

      However, high-quality TIG seams demand high purity of the joint edges prior to welding. They must be perfectly clean, i.e., free of rust, oil, grease, and any other impurities, in order to use the TIG process.

    MMA inverter welder characteristics

    • Wide range of welding current adjustment, under high-speed welding performance excellent, stable

    • The [product name] is a next-generation welding machine that combines advanced inverter technology with a high no load voltage, low consumption and high output. With its advanced inverter technology, this machine has the ability to produce a large number of arcs, which allows you to weld continuously without interruption or spatter. It also has an electronic reactor control system that prevents excessive heating of the workpiece and enables stable welding performance with minimal spatter;

    Functions

    • Wide range of welding current adjustment

    • under high-speed welding performance excellent

    • stable

    Specifications


    ModelMMA-200BMMA-250BMMA-300B
    TypeIGBT 1PCBIGBT 1PCBIGBT 1PCB
    Real Amp(A)120140160
    AC Input Voltage(V)220V (110V/220V can do)220V (110V/220V can do)220V (110V/220V can do)
    Rated Input Power Capacity(KVA)56.27
    Input Frequency(Hz)50/6050/6050/60
    Non-load Voltage(V)565656
    Output current range(A)20-20020-25020-300
    Rated Duty Cycle(%)60%60%60%
    Efficiency(%)85%85%85%
    Class of InsulationFFF
    Protection class of caseIP21IP21IP21
    Electrode diameter (mm)1.6-3.21.6-3.21.6-4.0
    Quick joint Size(mm)35-5035-5035-50
    Input power cable(m)1.81.81.8
    N.W./G.W.(kg)3.8/5.64/5.84.2/6
    Machine Size(LxWxH mm)310*137*225310*137*225310*137*225
    Package(LxWxH mm)350*206*275 kraft paper box350*206*275 kraft paper box350*206*275 kraft paper box
    Accessories1.8m 16mm² 200A holder1.8m 16mm² 200A holder1.8m 16mm² 200A holder
    1.2m 16mm² 300A clamp1.2m 16mm² 300A clamp1.2m 16mm² 300A clamp
    mask,brush,belt,manualmask,brush,belt,manualmask,brush,belt,manual

    Advantages Of Electric Welding Machine

    Electric welding machine uses electric energy, which can be converted into heat energy instantaneously, electric is very common, electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small, the operation is simple, the use is convenient, the speed is faster, the advantages such as the strength of welds after welding are widely used in various fields, especially for products requiring high strength, which can instantly connect the same metal material (or dissimilar metal, but different welding method) permanently, after heat treatment, the weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength for the manufacture of storage gas and liquid containers.

    Our Service

    • Test system is strict

    • We have a good relationship with our suppliers

    • We can deliver the goods on time

    FAQ

    Q: Are you a factory or trading company?
    A: We are trading company with our own factory with more than 21 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.


    Q:Can you make your welding machines under my brand?
    A:Yes, we can welding machines under your logo and it has the Minimum Order Quantity (MOQ) request..


    Q:What makes you different from other welding machines companies?
    A:We know most of the welding machines factories working methods, culture, business style, key persons and other relevant details. We look beyond a welding machines business which is just product based. We strongly believe that having a good positive working culture and put together a skilled and motivated team can reflect on our welding products and the service provided to our customers.
