400 Amp Arc Welding Machine

    Buy cheap 400 Amp Arc Welding Machine from wholesalers

    Buy cheap 400 Amp Arc Welding Machine from wholesalers
    • Buy cheap 400 Amp Arc Welding Machine from wholesalers

    400 Amp Arc Welding Machine

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MMA-400F 500F 630F
    Certification : ISO9001,CE,CCC
    Payment Terms : L/C, T/T, Western Union,, D/A, D/P
    Supply Ability : 3 thousand pieces per year
    Delivery Time : 30days
    Price : Negotiate
    • Product Details
    • Company Profile

    400 Amp Arc Welding Machine

    ARC-400F Dc Manual Metal Force Electric Heavy Duty Arc 400amp 1/2/3p 380v Welding Machine

    Description


    • The inverter arc welding machine is a high-performing, portable welder that features the latest inverter technology. It offers superior welding performance, with a nice weld result and minimal post-welding treatment. It's energy-efficient, mobile and user-friendly.
    • This series is IGBT inverter DC MMA welding machine with single PCB technology, with single phase 380V AC power supply, which adapts to the input voltage automatically with robust design and thermally protected. The machine is small and lightweight while it provides powerful performance during welding.

    Features

    • minimum post welding process

    • digital display

    • Lightweight, small volume, move conveniently.

    ​​MMA inverter welder characteristics

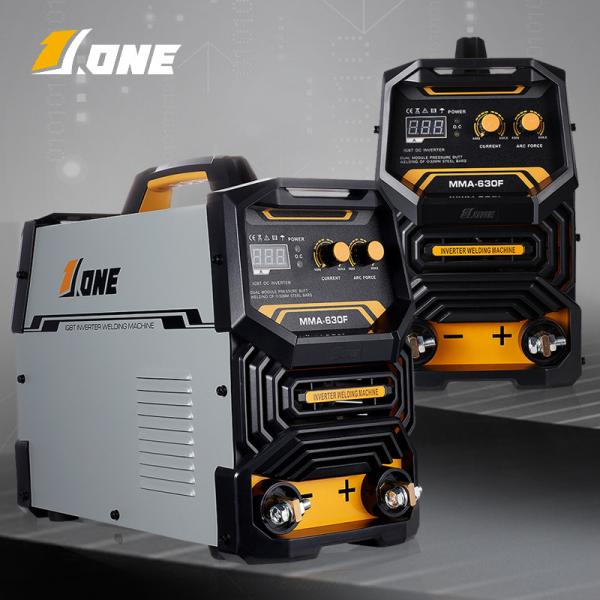

    • The MMA-630F is an advanced IGBT inverter welding machine with low consumption and high output, which features a high no load voltage and smooth and stable welding performance. It is applicable to all kinds of acid, alkalic electrodes, and has electronic reactor control. The new closed-loop control circuit achieves the formation of a low-splash arc, while the arc control technology makes arc choose easy and efficient.
    ModelMMA-400FMMA-500FMMA-630F
    TypeIGBT MODULEIGBT MODULEIGBT MODULE
    Real Amp(A)280380530
    AC Input Voltage(V)380V380V380V
    Rated Input Power Capacity(KVA)151515
    Input Frequency(Hz)50/6050/6050/60
    Non-load Voltage(V)777777
    Output current range(A)20-40020-50020-630
    Rated Duty Cycle(%)60%60%60%
    Efficiency(%)85%85%85%
    Class of InsulationFFF
    Protection class of caseIP21IP21IP21
    Electrode diameter (mm)1.6-5.01.6-5.01.6-5.0
    Quick joint Size(mm)35-5035-50 plate quick joint35-50 plate quick joint
    Input power cable(m)1.81.81.8
    N.W./G.W.(kg)9.3/12.310.3/12.313.5/15.5
    Machine Size(LxWxH mm)480*215*380480*215*380480*215*380
    Package(LxWxH mm)540*295*425 kraft paper box+ foam540*295*425 kraft paper box+ foam540*295*425 kraft paper box+ foam
    Accessories2M 35m2 300A holder2M 50m2 500A holder2M 50m2 500A holder
    2M 35m2 300A Clamp2M 35m2 300A Clamp2M 35m2 300A Clamp
    Brush,Mask,ManualBrush,Mask,ManualBrush,Mask,Manual

    Advantages Of Electric Welding Machine

    • Electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small, the operation is simple and convenient. Because of its speed and convenience, the welding machine can quickly process a large number of products with high efficiency

    FAQ

    Q:What kind of welding machines warranty do you have?
    A:We provide a 1-year warranty to most of our welding machines product. For more information, please send the product model and send an email to us.


    Q:Do you have quality assurance and certificates?

    A:Yes, every machine is tested 5 times before it is born and at least 20 minutes before shipping. Strict quality control is performed in every procedure from material sourcing, processing and testing to packaging.And we have certificates if you want it, contact us and give us your E-mail address we will send you.


    Q:Is OEM and ODM service available ?

    A:Yes, as what you like.
