    CE ROHS Shielded Metal Arc Welding Machine Small Electric Welder

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MMA-200A
    Certification : CE ROHS ISO9001
    Payment Terms : T/T, L/C
    Supply Ability : 70000 PCS /month
    Delivery Time : 4 WEEKS
    Price : Negotiate
    • Product Details
    • Company Profile

    CE ROHS Shielded Metal Arc Welding Machine Small Electric Welder

    CE ROHS Shielded Metal Arc Welding Machine Small Electric Welder

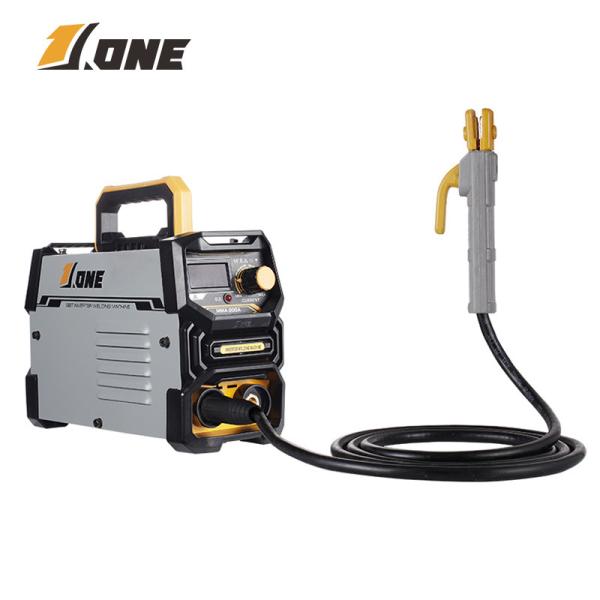

    New Design MMA-200 Welding Equipment Shielded Metal Arc Welding Stick Welding IGBT Inverter

    • Our mini welding machine is a portable DC inverter type. It has advanced technology and good performance.
    • This mini welding machine is a top-quality, inexpensive inverter welding machine.
    • The sleek design for easy setup and operation.
    • We offer free technical support should you have problems with your unit
    • This arc welder provides a smooth arc and produces little spatter for easy finishing.

    Technical Parameter


    ModelMMA-200A
    TypeIGBT 1 PCB
    AC Input Voltage(V)220V
    Rated Input Power Capacity(KVA)5
    Input Frequency(Hz)50/60
    Non-load Voltage(V)60
    Output current range(A)20-200
    Rated Duty Cycle(%)60%
    Efficiency(%)85%
    Class of InsulationF
    Protection class of caseIP21
    Electrode diameter(mm)1.6-2.5
    Quick joint Size(mm)10-25
    Input power cable(m)1.8
    N.W./G.W.(kg)1.9/3.2
    Machine Size(LxWxH mm)250*105*170 kraft paper box
    Package(LxWxH mm)/ 8 in 1520*305*530 kraft paper box
    Accessories1.8m 16mm² 200A holder
    1.2m 16mm² 300A clamp
    mask,brush,belt,manual
