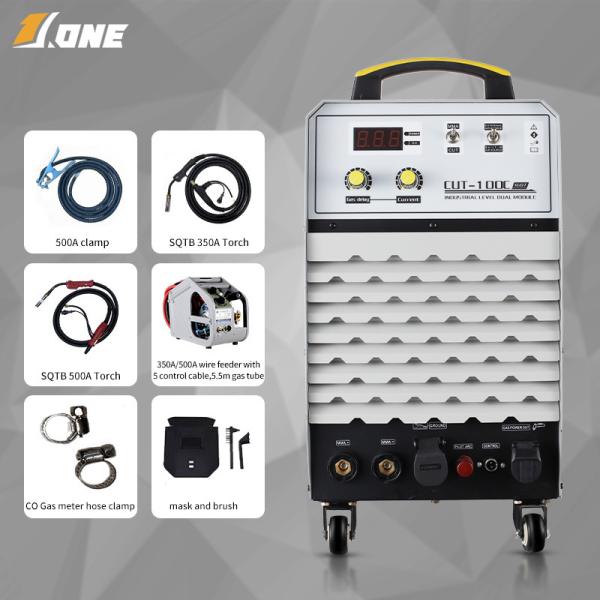

    Portable 380 Volt Plasma Cutting Welding Machine Cut 100 Plasma Cutter

    Ask Lasest Price
    Brand Name : JONE
    Model Number : CUT-100C
    Certification : ISO9001,CE,CCC
    Payment Terms : L/C, T/T, Western Union,D/A, D/P
    Supply Ability : 1 thousand pieces per year
    Delivery Time : 30days
    Price : Negotiate
    • Product Details
    • Company Profile

    Portable 380 Volt Plasma Cutting Welding Machine Cut 100 Plasma Cutter

    portable cut 100 plasma cutter 380v plasma cutters cutting machinery

    Description

    • Our plasma cutters are among the best in the industry. They are centrally controlled from a computer, ensuring accuracy and efficiency. We offer some of the most advanced CNC plasma cutters available on the market today

    • The part of a CNC plasma cutter that makes it so incredible efficient is the Computer Numerically Controlled (CNC) software. The CNC software, with the help of the computer, controls and directs the plasma cutting torch with speed, accuracy and efficiency. Computer-based software programs like CAD/CAM are an integral part of each CNC machine tool.

    Features

    • High speed cutter is available without thermal distortion
    • Cutting is available by contact or non-contact of no-nozzle

    • The beginner can available for easy operation

    ​​​​PLASMA CUTTER characteristics

    • Plasma cutters deliver the most reliable and accurate cutting results that are achieved through a high impedance current to eliminate contamination. These types of systems allow cutting of tough metals such as stainless steel, aluminum, copper and brass. Plasma cutters are cheaper than other metal cutting methods and can create higher-quality edges which make them ideal for fasteners applications.


    ModelCUT-40CCUT-60CCUT-100C
    TypeIGBTIGBTIGBT
    AC Input Voltage(V)220V(110V can do)380V380V
    Output current range(A)0-400-600-100
    Rated Input Power Capacity(KVA)6.2109
    Input Frequency(Hz)20~4020~6030~100
    Non-load Voltage(V)300300300
    Rated Duty Cycle(%)60%60%60%
    Efficiency(%)85%85%93%
    Class of InsulationFFF
    Protection class of caseIP21IP21IP21
    Qualified cutting (mm)4mm-6mm6mm-10mm25mm-30mm
    Quick joint Size10-2510-2535-50
    GW/NW(KG)19.5/23.534KG53KG
    Machine Size(LxWxH mm)425*285*335505*330*410565*315*580
    Package(LxWxH mm)510*380*390 kraft paper box+ foam600*425*490 kraft paper box+ foam630*330*650 kraft paper box+ foam
    Accessories2m 16mm2300A clamp2m 125mm2 300A clamp2m 35mm2 500A clamp 2m 35mm2 500A holder
    4m AG-60 cutting gun4m P80 cutting gun4m P80 cutting gun
    mask, brush, manual Relieve valvemask, brush, manual Relieve valvemask, brush, manual Relieve valve

    Advantages Of Electric Welding Machine

    • Precision: One of the greatest advantages of using these cutters is related to its impeccable precision and accuracy. Since most of these cutters are connected to CNC machines, it can be used to cut metals into desired shape quite easily.

    • Power consumption: In comparison to the other metal cutters, these cutters utilize less power. This is known to be another advantage of using these unique cutters.

    FAQ

    Q: When can I get the products?
    A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.


    Q: How does your factory do regarding quality control?
    A: Our factory has gained SAA certificate and EMC certificate and ISO9001 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.


    Q:I haven't sold welding machine before, how to start?

    A:Hear what our customer Juzer said:“I am in the printing machine industry. The first time I got to know the welding machine was when I was doing market research and found that it was in great demand. The supplier is very good. After listening to my idea, they agreed me to make a trial order in a small batch, and they have always supported me fully, and even introduced me to an individual. With our joint efforts, my quantity increased from 500 units to 2,000 units per month within three months. It shows how important it is to have a reliable partner”
