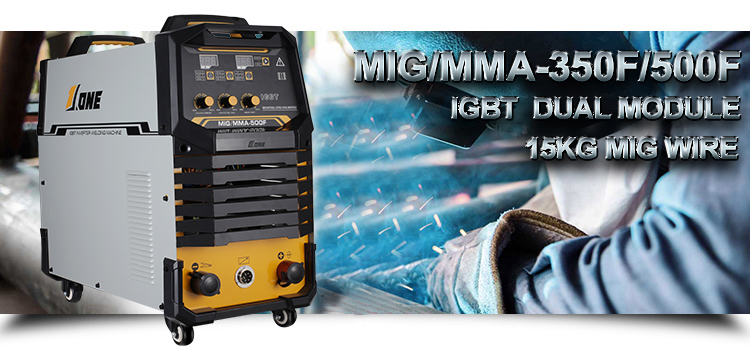

IGBT MODULE Mig Mag Pulse Welding Machine Double Pulse 500 Amp Mig Welder

Dongguan Jone Welding Technology Co., Ltd.
Contact Now
    Buy cheap IGBT MODULE Mig Mag Pulse Welding Machine Double Pulse 500 Amp Mig Welder from wholesalers

    Buy cheap IGBT MODULE Mig Mag Pulse Welding Machine Double Pulse 500 Amp Mig Welder from wholesalers
    • Buy cheap IGBT MODULE Mig Mag Pulse Welding Machine Double Pulse 500 Amp Mig Welder from wholesalers

    IGBT MODULE Mig Mag Pulse Welding Machine Double Pulse 500 Amp Mig Welder

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MIG/MMA-350F 500F
    Certification : CE、ISO9001
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 1000 pieces per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IGBT MODULE Mig Mag Pulse Welding Machine Double Pulse 500 Amp Mig Welder

    IGBT MODULE Mig Mag Pulse Welding Machine Double Pulse 500 Amp Mig Welder


    MIG welding, or MIG welding, is an abbreviation for "Metal Inert Gas" which is more formally known as "Gas Metal Arc Welding" (GMAW) or "Metal Inert Gas Welding". The term MIG comes from the original shielding gasses used that were the inert, or Nobel, gasses. Today the gases used vary, so the name has officially been changed to "Gas Metal Arc Welding". MIG welding is a technique that uses a wire feed to feed solid filler wires to the weld joint. The wire feed is connected to a constant voltage power supply that creates the arc to melt the wire when it hits the weld joint. Before it makes an arc there needs to be a shielding gas feed through the system. MIG welding guns combine the wire, electricity and shielding gasses all at once


    MIG welding is a process that uses a solid filler wire along with an electric arc to melt the metal together. The process heats the base metal, melting it and creating a weldment. MIG welding can be done in different ways, but the most common way is to use a MIG gun that combines the wire, electricity and shielding gasses all at the same time. The MIG gun has a trigger that, once squeezed, starts the metal joining process.


    technical parameter


    ModelMIG/MMA-350FMIG/MMA-500F
    Type of the wire feederIGBT MODILE 15KG MIG WIREIGBT MODILE 15KG MIG WIRE
    Real Amp(A)350500
    AC input Voltage(V)AC 380VAC 380V
    Rated Input Power Capacity(KVA)1425
    Input Frequency(Hz)50/6050/60
    Non-load Voltage(V)54V56V
    Output current range(A)50-350A50-500A
    Welding-wire diameter (mm)0.8, 1.0, 1.20.8,1.0, 1.2,1.6
    Rated Duty Cycle(%)35℃/40%35℃/60%
    Efficiency(%)93%93%
    Class of InsulationFF
    Protection class of caseIP21SIP21S
    Quick joint Size(mm)50-7050-70
    Type of the wire feederDC24V-350ADC24V-500A
    Wire-feeding speed (m/min)3.6--123.6--20
    Post flow time (S)0.50.5
    N.W./G.W.(kg)25/2932/36
    Machine Size(LxWxH mm)580*330*600650*330*630
    Package Dimension(LxWxH mm)670*330*585 kraft paper box+foam765*425*680mm kraft paper box+foam
