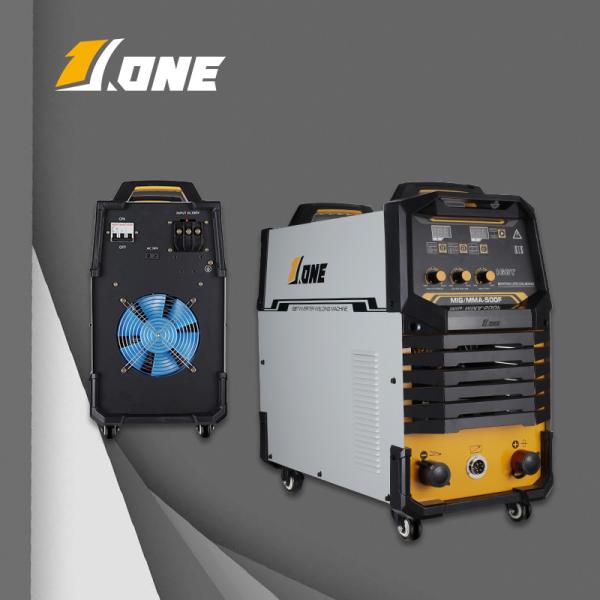

    AC380V CO2 Gasless Flux Argon Mig Welder 350 Amp Welding Machine

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MIG/MMA-350F 500F
    Certification : CE、ISO9001
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 1000 pieces per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    AC380V CO2 Gasless Flux Argon Mig Welder 350 Amp Welding Machine

    AC380V CO2 Gasless Flux Argon Mig Welder 350 Amp Welding Machine


    MIG welding stands for "Metal Inert Gas" and was originally the only form of welding used on many projects. The process uses a wire feed to feed solid filler wire to the weld joint. The wire feed is connected to a constant voltage power supply that creates a spark that melts the wire when it hits the weld Joint, then it forms an arc between them. Before the wire creates an arc there needs to be a shielding gas feed through the system. MIG welding is done through a MIG gun that combines the wire, electricity and shielding gasses all at the same time.


    MIG welding, or MIG, is a weld process that combines power and shielding gases into one simple machine. You can weld with MIG either on a shielded or open (open arc) torch. This process uses a wire feed to feed solid filler wire to the weld joint. The wire feed is connected to a constant voltage power supply that creates the arc to melt the wire when it hits the weld joint. Before the wire creates an arc there needs to be a shielding gas feed through the system.


    technical parameter


    ModelMIG/MMA-350FMIG/MMA-500F
    Type of the wire feederIGBT MODILE 15KG MIG WIREIGBT MODILE 15KG MIG WIRE
    Real Amp(A)350500
    AC input Voltage(V)AC 380VAC 380V
    Rated Input Power Capacity(KVA)1425
    Input Frequency(Hz)50/6050/60
    Non-load Voltage(V)54V56V
    Output current range(A)50-350A50-500A
    Welding-wire diameter (mm)0.8, 1.0, 1.20.8,1.0, 1.2,1.6
    Rated Duty Cycle(%)35℃/40%35℃/60%
    Efficiency(%)93%93%
    Class of InsulationFF
    Protection class of caseIP21SIP21S
    Quick joint Size(mm)50-7050-70
    Type of the wire feederDC24V-350ADC24V-500A
    Wire-feeding speed (m/min)3.6--123.6--20
    Post flow time (S)0.50.5
    N.W./G.W.(kg)25/2932/36
    Machine Size(LxWxH mm)580*330*600650*330*630
    Package Dimension(LxWxH mm)670*330*585 kraft paper box+foam765*425*680mm kraft paper box+foam
