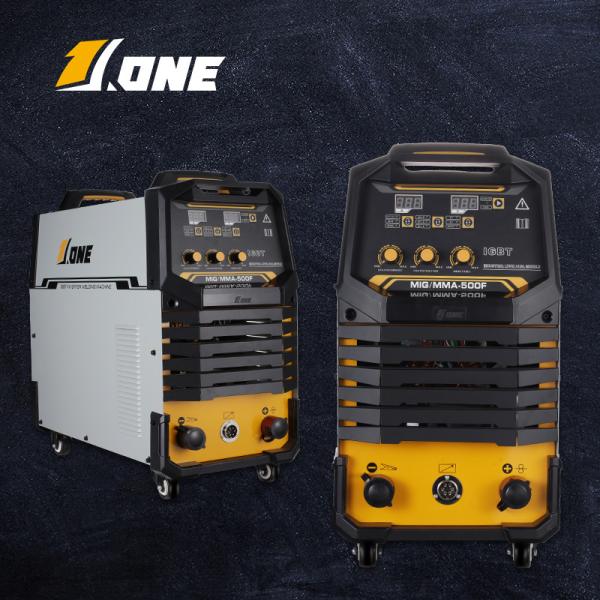

    MIG-500 Three Phase Industrial MIG Welder High Frequency 380VAC

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MIG/MMA-350F 500F
    Certification : CE、ISO9001
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 1000 pieces per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    MIG-500 Three Phase Industrial MIG Welder High Frequency 380VAC

    MIG-500 Three Phase Industrial MIG Welder High Frequency 380VAC


    First thing you will notice is the sheer size of this machines power supply compared to that of a smaller hobby welder. The maximum power output will be much higher and this machine will run day and night in a production environment hassle and trouble free. The duty cycle will be much longer and there will also be a better current output from the machine which means you will have far superior weld beads.

    The second area is the torch, or the MIG welding gun. Once again on the lower end of the scale, the guns that are supplied with the cheap MIG welders are usually proprietary to that particular brand of welding machine. The MIG torch welding consumables will not be as "main stream" and the quality of the actual welding torch can be of much lesser quality and durability, which will lead to failures and lots of swearing and cursing.

    Industrial MIG welding guns will offer higher duty cycles, many more consumable options, longer service life and a wider availability of spare. Also these industrial trade quality MIG welding guns will be more comfortable to use which means less user fatigue, they will have smoother feeding resulting in far superior welds and if you are in business the reliability of these torches will save you money.


    technical parameter


    ModelMIG/MMA-350FMIG/MMA-500F
    Type of the wire feederIGBT MODILE 15KG MIG WIREIGBT MODILE 15KG MIG WIRE
    Real Amp(A)350500
    AC input Voltage(V)AC 380VAC 380V
    Rated Input Power Capacity(KVA)1425
    Input Frequency(Hz)50/6050/60
    Non-load Voltage(V)54V56V
    Output current range(A)50-350A50-500A
    Welding-wire diameter (mm)0.8, 1.0, 1.20.8,1.0, 1.2,1.6
    Rated Duty Cycle(%)35℃/40%35℃/60%
    Efficiency(%)93%93%
    Class of InsulationFF
    Protection class of caseIP21SIP21S
    Quick joint Size(mm)50-7050-70
    Type of the wire feederDC24V-350ADC24V-500A
    Wire-feeding speed (m/min)3.6--123.6--20
    Post flow time (S)0.50.5
    N.W./G.W.(kg)25/2932/36
    Machine Size(LxWxH mm)580*330*600650*330*630
    Package Dimension(LxWxH mm)670*330*585 kraft paper box+foam765*425*680mm kraft paper box+foam
