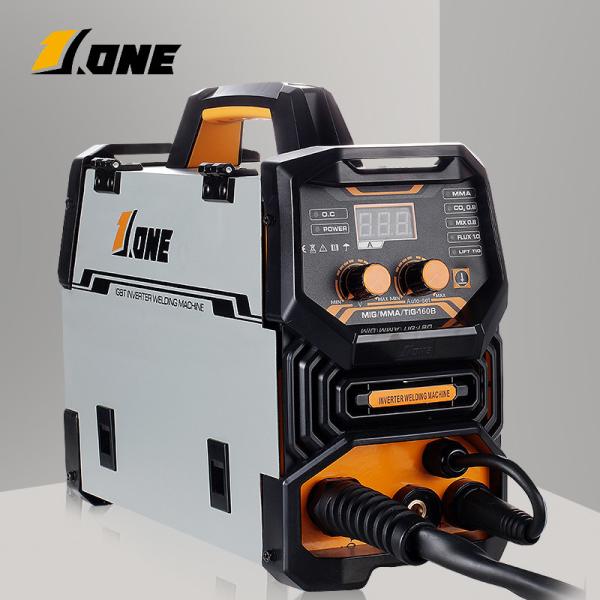

ISO9001 120Amp CO2 Double Pulse Mig Welder For Aluminum And Steel

Dongguan Jone Welding Technology Co., Ltd.
Contact Now
    Buy cheap ISO9001 120Amp CO2 Double Pulse Mig Welder For Aluminum And Steel from wholesalers

    Buy cheap ISO9001 120Amp CO2 Double Pulse Mig Welder For Aluminum And Steel from wholesalers
    • Buy cheap ISO9001 120Amp CO2 Double Pulse Mig Welder For Aluminum And Steel from wholesalers

    ISO9001 120Amp CO2 Double Pulse Mig Welder For Aluminum And Steel

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MIG/MMA/TIG-160B
    Certification : ISO9001,CE,CCC
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union,, D/A, D/P
    Supply Ability : 10 thousand pieces per year
    Delivery Time : 30days
    • Product Details
    • Company Profile

    ISO9001 120Amp CO2 Double Pulse Mig Welder For Aluminum And Steel

    CO2 Double Pulse MIG MAG TIG MMA Aluminium Inverter Welding Welder Machine

    Description

    • MIG welding is fast and efficient when done correctly. As with all welding, it's important to be safe, so use proper ventilation and wear the required safety equipment. MIG welding requires no electricity, gas or special lighting like arc welding does. It can be done almost anywhere in the world as long as power is available and a source of shielding gas is present. MIG machines are also simple to operate, making them popular among smaller companies with fewer machines on staff.

    Features

    • Start/crater/pulse current control

    • Mild Steel, nickel alloy, copper alloy, stainless, aluminum alloy, titanium alloy

    • Weld with gas co2 for solid wire, 0.8mm.

    ​​MIG inverter welder characteristics

    • Advanced IGBT inverter technology, low consumption and high output.

    • High no load voltage, smooth and stable welding performance with minimal spatter.

    • All kinds of acid, alkalic electrodes are applicable.

    ModelMIG/MMA/TIG-160B
    TypeIGBT ≤1kg gas/gasless
    Real Amp(A)120
    AC Input Voltage(V)220V (110V can do)
    Rated Input Power Capacity(KVA)5
    Input Frequency(Hz)50/60
    Non-load Voltage(V)44
    Output current range(A)20-160
    Rated Duty Cycle(%)60%
    Efficiency(%)85%
    Class of InsulationF
    Protection class of caseIP21
    Wire diameter(mm)0.8/1.0
    Wire weight(kg)≤ 1kg
    Quick joint Size(mm)10-25
    Input power cable(m)1.8
    N.W./G.W.(kg)7.6/9.4
    Machine Size(LxWxH mm420*160*310
    Package(LxWxH mm)455*270*355 kraft paper box
    Accessories1.8M 16mm2 200A holder
    1.2M 16mm2 300A clamp
    2m Build-in Torch
    Brush, Mask, Manual

    Advantages Of Electric Welding Machine

    • MIG welding machine is suitable for working in dry environment and does not need too many requirements. Electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small and the operation is simple. The use is convenient, the speed is faster and there are no magnetic protection problems caused by current noise. For example: portable welding equipment, mine work equipment, agricultural machinery repair


    FAQ

    Q:I haven't sold welding machine before, how to start?

    A:Hear what our customer Juzer said:“I am in the printing machine industry. The first time I got to know the welding machine was when I was doing market research and found that it was in great demand. The supplier is very good. After listening to my idea, they agreed me to make a trial order in a small batch, and they have always supported me fully, and even introduced me to an individual. With our joint efforts, my quantity increased from 500 units to 2,000 units per month within three months. It shows how important it is to have a reliable partner”


    Q:Payment

    A:30% deposit,70% balance.T/T, L/C,WESTERN UNION, Trade Assurance is recommended, you could pay through Trade Assurance on Alibaba.


    Q:Delivery

    A:The 1000pcs goods need 35-40 days after we receive the deposit.
