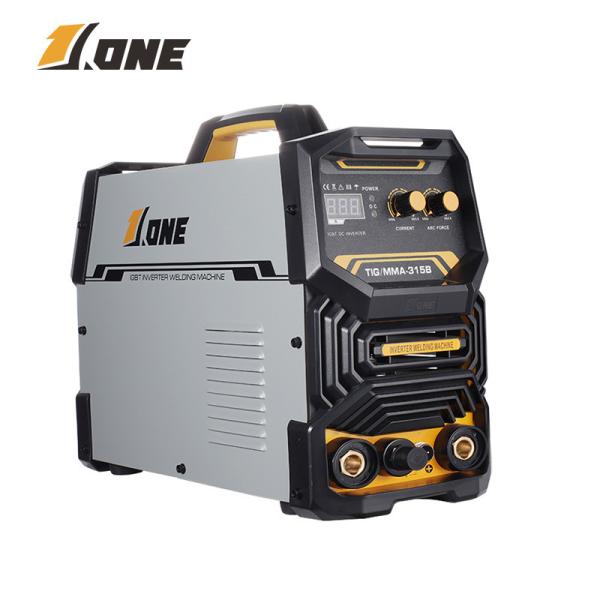

    High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B

    Ask Lasest Price
    Brand Name : JONE
    Model Number : TIG/MMA-315B
    Certification : CE
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 70000 PCS+per /month
    Delivery Time : 4 WEEKS
    • Product Details
    • Company Profile

    High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B


    JONE soldador tig mma aluminum MOS welding machine tig/mma 315B

    • The TIG/MMA 200 Inverter Welding Machine offers a duty cycle of 60% at 200 A welding current with inverter technology for low weight and high power.
    • The HF high-frequency ignition ignites the arc during TIG welding without touching the workpiece.
    • The JONE TIG MOS multi-purpose welding machine TIG/MMA is designed for arc welding.
    • The powerful and effective inverter allows a duty cycle of 60% at 200A welding current


    technical parameter


    ModelTIG/MMA-250BTIG/MMA-315B
    TypeMOS 3PCBMOS 3PCB
    AC Input Voltage(V)220V(110V/220V can do)220V
    Output current range(A)20-20020-315
    Rated Input Power Capacity(KVA)79.2
    Input Frequency(Hz)50~6050~60
    Non-load Voltage(V)5656
    Rated Duty Cycle(%)60%60%
    Efficiency(%)85%85%
    Class of InsulationFF
    Protection class of caseIP21IP21
    Quick joint Size35-5035-50
    GW/NW(KG)6/10KG11/15KG
    Machine Size(LxWxH mm)420*160*310480*215*380
    Package(LxWxH mm)455*270*355 kraft paper box+ foam540*295*425 kraft paper box+ foam
    Accessories1.8M 16mm2 200A holder1.8M 25mm2300A holder
    1.2M 16mm2 300A clamp1.2M25mm2 300A clamp
    4M WP-17 Black Torch4M WP-26 Blue Torch
    Brush, Mask, ManualBrush, Mask, Manual
