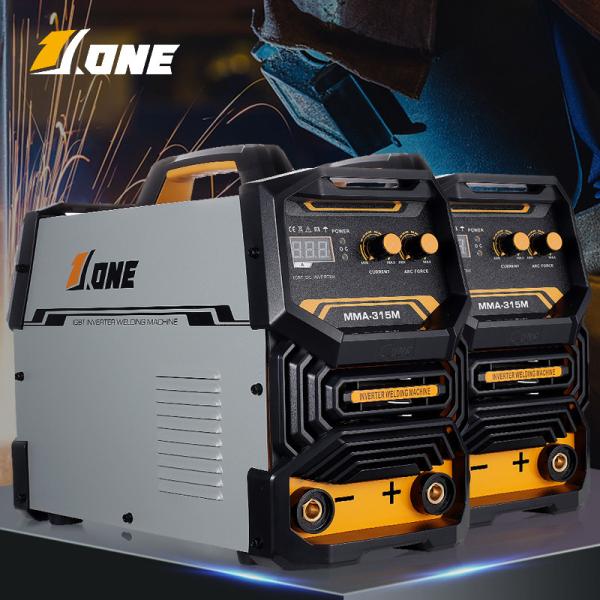

Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

Dongguan Jone Welding Technology Co., Ltd.
Contact Now
    Buy cheap Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder from wholesalers

    Buy cheap Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder from wholesalers
    • Buy cheap Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder from wholesalers

    Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MMA-250M 280M 315M
    Certification : ISO9001,CE,CCC
    Payment Terms : L/C, T/T, Western Union,, D/A, D/P
    Supply Ability : 1 million pieces per year
    Delivery Time : 30days
    Price : Negotiate
    • Product Details
    • Company Profile

    Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

    Compact maquina de soldar portable mos mma250/280/315M dc arc inverter welding machine 110v machinery dual voltage mma

    Description

    • This series is MOS inverter DC MMA welding machine with 3 PCB technology, with single phase 220V AC power supply, which adapts to the input voltage automatically with robust design and thermally protected. The inverter arc welding machine features energy saving, multiple functions, portability and user friendly. It adopt the most advanced inverter technology, that guarantees superior welding performance, nice welding result and minimum post-welding treatment.

    • This series is MOS inverter DC MMA welding machine with 3 PCB technology, with 1 phase 220V AC power supply, which adapts to the input voltage automatically with robust design and thermally protected. Machine is small and lightweight while welding performance is powerful.


    Features

    • minimum post welding process

    • wide usage for metal workshops
    • excellent welding performance

    ​​MMA inverter welder characteristics

    • The MMA-315M is ergonomically-designed so that you don’t have to contort yourself into any awkward positions while you work.
    • It’s water-resistant design means that it can withstand heavy rain without getting damaged or losing power; it also keeps out dust and other debris so that your workspace stays clean and tidy.

    ModelMMA-250MMMA-280MMMA-315M
    TypeMOS 3PCBMOS 3PCBMOS 3PCB
    Real Amp(A)160180220
    AC Input Voltage(V)220V (110V/220V can do)220V (110V/220V can do)220V (110V/220V can do)
    Rated Input Power Capacity(KVA)77.79.2
    Input Frequency(Hz)50/6050/6050/60
    Non-load Voltage(V)565656
    Output current range(A)20-25020-28020-315
    Rated Duty Cycle(%)60%60%60%
    Efficiency(%)85%85%85%
    Class of InsulationFFF
    Protection class of caseIP21IP21IP21
    Electrode diameter (mm)1.6-4.01.6-5.01.6-5.0
    Quick joint Size(mm)35-5035-5035-50
    Input power cable(m)1.81.81.8
    N.W./G.W.(kg)5.3/6.86/7.511/13
    Machine Size(LxWxH mm)420*160*310420*160*310480*215*380
    Package(LxWxH mm)455*270*355 kraft paper box455*270*355 kraft paper box540*295*425 kraft paper box
    Accessories1.8m 16mm2 200A holder1.8m 16mm2 200A holder1.8m 25mm2 300A holder
    1.2m 16mm2 300A clamp1.2m 16mm2 300A clamp1.2m 25mm2 300A clamp
    Brush,Mask,ManualBrush,Mask,ManualBrush,Mask,Manual

    Advantages Of Electric Welding Machine

    • Our electric welding machine is widely used in various fields, including the manufacture of storage gas and liquid containers. After heat treatment, the weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength.

    FAQ

    Q:Do you have quality assurance and certificates?

    A:Yes, every machine is tested 5 times before it is born and at least 20 minutes before shipping. Strict quality control is performed in every procedure from material sourcing, processing and testing to packaging.And we have certificates if you want it, contact us and give us your E-mail address we will send you.


    Q:May I get some samples first?

    A:Yes my friend,It’s our pleasure to provide you samples. After price and large order confirmed, the samples fee will be regressed.


    Q:Payment

    A:30% deposit,70% balance.T/T, L/C,WESTERN UNION, Trade Assurance is recommended, you could pay through Trade Assurance on Alibaba.
