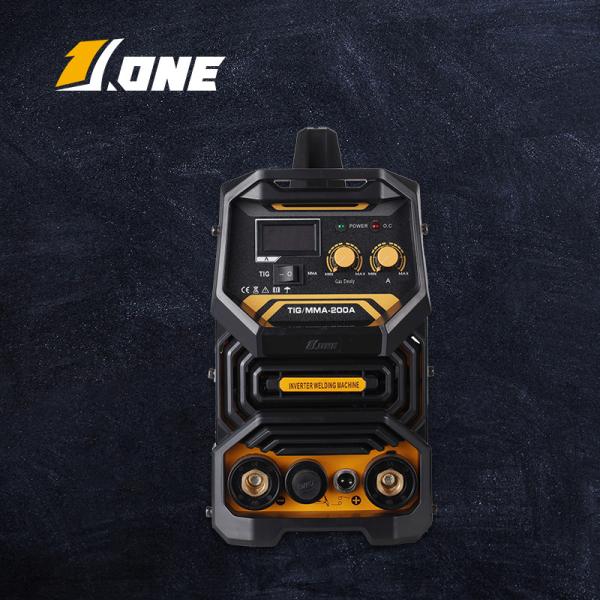

high speed 7Kva Electric Tig Welder Tig 200a Welding Machine IP21

Dongguan Jone Welding Technology Co., Ltd.
Contact Now
    Buy cheap high speed 7Kva Electric Tig Welder Tig 200a Welding Machine IP21 from wholesalers

    Buy cheap high speed 7Kva Electric Tig Welder Tig 200a Welding Machine IP21 from wholesalers
    • Buy cheap high speed 7Kva Electric Tig Welder Tig 200a Welding Machine IP21 from wholesalers

    high speed 7Kva Electric Tig Welder Tig 200a Welding Machine IP21

    Ask Lasest Price
    Brand Name : JONE
    Model Number : TIG/MMA-200A
    Certification : CE
    Payment Terms : T/T, L/C
    Supply Ability : 70000 PCS /month
    Delivery Time : 4 WEEKS
    Price : Negotiate
    • Product Details
    • Company Profile

    high speed 7Kva Electric Tig Welder Tig 200a Welding Machine IP21

    high speed 7Kva Electric Tig Welder Tig 200a Welding Machine IP21


    We all know that TIG welding offers superior weld heat input, making it a highly effective way to weld metal. Modern inverter TIG welding techniques allow for high-strength connections, even on thin materials with limited penetration opportunities. So if you have a business that needs to weld some pipes or appliances or joints for high profile products, then the TIG is what you need.


    TIG welding offers many benefits including its versatility. When compared to other welding processes, such as MIG and SMAW, TIG offers many advantages over other welding processes; the most notable being its ability to weld thicker metals with minimal distortion or warpage. In the past, this difficulty has hindered the TIG process when used in construction projects due to the higher cost and high learning curve of this type of process. With modern equipment though, it is no longer an obstacle for large-scale construction projects. Not only that but coupling TIG welding with laser technology can create a new type of one-of-a-kind welds that can never be reproduced using conventional methods."


    technical parameter


    ModelTIG/MMA-200A
    TypeIGBT 1PCB
    Real Amp(A)160
    AC Input Voltage(V)220V(110V/220V can do)
    Rated Input Power Capacity(KVA)7
    Input Frequency(Hz)50/60
    Non-load Voltage(V)56
    Output current range(A)20-200
    Rated Duty Cycle(%)60%
    Efficiency(%)85%
    Class of InsulationF
    Protection class of caseIP21
    Quick joint Size(mm)35-50
    Input power cable(m)1.8
    N.W./G.W.(kg)4.5/8.3KG
    Machine Size(LxWxH mm)420*160*310
    Package(LxWxH mm)455*270*355 kraft paper box+ foam
    Accessories1.8M 16mm2 200A holder
    1.2M 16mm2 300A clamp
    4M WP-17 Black Torch
    Brush, Mask, Manual
