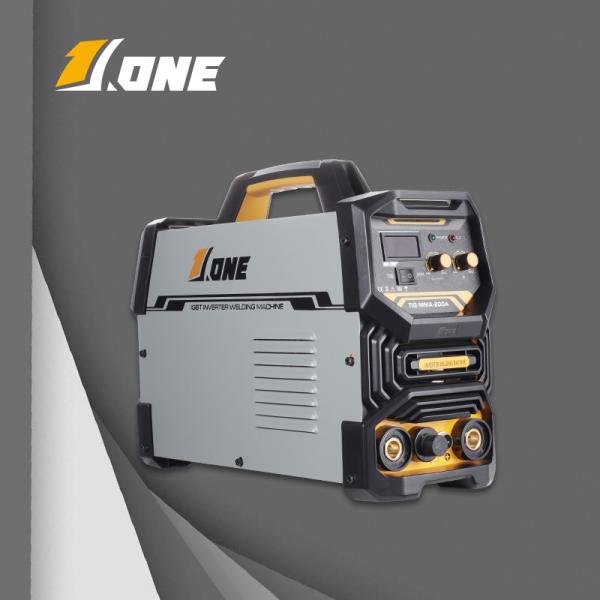

    WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

    Ask Lasest Price
    Brand Name : JONE
    Model Number : TIG/MMA-200A
    Certification : CE
    Payment Terms : T/T, L/C
    Supply Ability : 70000 PCS /month
    Delivery Time : 4 WEEKS
    Price : Negotiate
    • Product Details
    • Company Profile

    WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

    WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty


    TIG welding is the most common welding process. There are a number of reasons why this is. Innovative and attractive, TIG welding can be used to seal difficult-to-weld areas such as those on the underside of sinks and in aprons.

    1. The new closed-loop control circuit achieves the formation of a low-splash arc.

    2. Adopt inverter technology, stable welding.

    3. New arc control technology, arc choose is easy and efficient.

    4. Wide range of welding current adjustment, under high-speed welding performance excellent, stable.

    technical parameter


    ModelTIG/MMA-200A
    TypeIGBT 1PCB
    Real Amp(A)160
    AC Input Voltage(V)220V(110V/220V can do)
    Rated Input Power Capacity(KVA)7
    Input Frequency(Hz)50/60
    Non-load Voltage(V)56
    Output current range(A)20-200
    Rated Duty Cycle(%)60%
    Efficiency(%)85%
    Class of InsulationF
    Protection class of caseIP21
    Quick joint Size(mm)35-50
    Input power cable(m)1.8
    N.W./G.W.(kg)4.5/8.3KG
    Machine Size(LxWxH mm)420*160*310
    Package(LxWxH mm)455*270*355 kraft paper box+ foam
    Accessories1.8M 16mm2 200A holder
    1.2M 16mm2 300A clamp
    4M WP-17 Black Torch
    Brush, Mask, Manual
