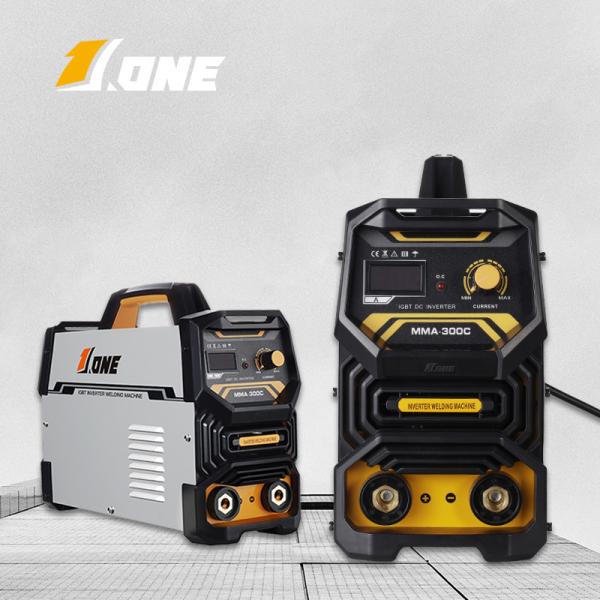

1PCB DC Inverter Arc MMA Welder

    Buy cheap 1PCB DC Inverter Arc MMA Welder from wholesalers

    Buy cheap 1PCB DC Inverter Arc MMA Welder from wholesalers
    • Buy cheap 1PCB DC Inverter Arc MMA Welder from wholesalers

    1PCB DC Inverter Arc MMA Welder

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MMA-200C 250C 300C
    Certification : ISO9001,CE,CCC
    Payment Terms : L/C, T/T, Western Union,, D/A, D/P
    Supply Ability : 1 million pieces per year
    Delivery Time : 30days
    Price : Negotiate
    • Product Details
    • Company Profile

    1PCB DC Inverter Arc MMA Welder

    best high frequency DC inverter mma welding machine mma-200C energy saving Inverter ARC Welder

    Description

    • We offer best inverter arc welding machine. This series features fast contact speed, low amperage consumption and high performance which can be used in all types of metal processing industries. It can be operated by anyone even if they are inexperienced. With its slim design, it has the perfect balance between portability and usability.

    Features

    • simple adjustment for selection of welding current and suitable length of electrode

    • automatic compensation for voltage fluctuation

    ​​MMA inverter welder characteristics

    • This machine is completely waterproof and windproof, which means that it will not only last longer but also work in harsh conditions like rain or snow. The new closed-loop control circuit ensures that the arc is formed at a low splash level, which means less spatter on your job site.

    Specifications


    ModelMMA-200BMMA-250BMMA-300B
    TypeIGBT 1PCBIGBT 1PCBIGBT 1PCB
    Real Amp(A)120140160
    AC Input Voltage(V)220V (110V/220V can do)220V (110V/220V can do)220V (110V/220V can do)
    Rated Input Power Capacity(KVA)56.27
    Input Frequency(Hz)50/6050/6050/60
    Non-load Voltage(V)565656
    Output current range(A)20-20020-25020-300
    Rated Duty Cycle(%)60%60%60%
    Efficiency(%)85%85%85%
    Class of InsulationFFF
    Protection class of caseIP21IP21IP21
    Electrode diameter (mm)1.6-3.21.6-3.21.6-4.0
    Quick joint Size(mm)35-5035-5035-50
    Input power cable(m)1.81.81.8
    N.W./G.W.(kg)3.8/5.64/5.84.2/6
    Machine Size(LxWxH mm)310*137*225310*137*225310*137*225
    Package(LxWxH mm)350*206*275 kraft paper box350*206*275 kraft paper box350*206*275 kraft paper box
    Accessories1.8m 16mm² 200A holder1.8m 16mm² 200A holder1.8m 16mm² 200A holder
    1.2m 16mm² 300A clamp1.2m 16mm² 300A clamp1.2m 16mm² 300A clamp
    mask,brush,belt,manualmask,brush,belt,manualmask,brush,belt,manual

    Advantages Of Electric Welding Machine

    • Welders are used in production of electric welding machines. Welding is a special welding method to join different materials together and improve their ductility, resistance to corrosion and dimensional stability. The electric welders are widely used in the fields of wire drawing and electric fuel supply.

    FAQ

    Q:I have not heard of your company before, are you a new company?
    A:Our company was established since 2001 by a team of members with welding machines exceptional knowledge and with over 20 years of experience in the welding machines Industry.


    Q:Can I buy other factory's products directly from you?

    A:Yes, of course. There are already many customers cooperating with us in this way. We have over 20 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.


    Q:Do you offer any welding machines technical support?
    A:Yes, we have engineers ready to assist customers with welding machines technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
